Chemistry Laboratory Multi-Bottle Type Freeze Dryer Machine For Medicine Preservation
Product Description of Freeze Dryer Machine
HT-50FDA-Y vacuum freeze dryer is widely used in medical, pharmaceutical, biological research, chemical, and food fields. Freeze-dried articles are easy to be stored for a long time, and can be restored to the pre-freeze-dried state and retain their original biochemical characteristics after water addition.
Technical Parameters of Freeze Dryer Machine
| Product description | HT-50FDA-Y in situ silicone oil freeze dryer (gland type) |
| Drying area | 0.55m2 |
| Cold trap temperature | ≤ - 75 ℃ |
| Shelf temperature | - 50 ℃ - + 70 ℃ |
| Limit vacuum | ≤ 5pa |
| Water catching capacity | ≥10Kg |
| Material tray | 430*320mm |
| Number of diaphragm layers | 4+1 |
| Layer spacing | 80mm |
| Overall power | 5500w |
| Overall weight | 580kg |
| Overall dimension | 1280*850*1650(+300)mm |
| Loadable material | 5.5L (material thickness 10mm) |
| Vials that can be loaded | Ф 12mm 3630 pieces Ф 16mm 1976 pieces Ф 22mm 1064 pieces |
| Cooling mode | Air cooling, good ventilation, room temperature ≤ 25 ℃ |
| Voltage | 380V/50HZ |
Main Features of Freeze Dryer Machine
1. The electric defrosting of the cold trap improves the defrosting speed and safety through two control modes temperature and time.
2. Vacuum regulating system: vacuum degree is regulated during sublimation and analytical drying process to avoid foaming, bottle blowing, and accelerating freeze-drying efficiency of special substances.
3. Optional negative pressure aeration system interface, built-in 0.2 μM filter element to reduce secondary pollution of samples, and nitrogen or inert gas can be backfilled.
4. The PC (computer) terminal can remotely monitor the operation status of the equipment, with a maximum monitoring distance of 1.5km (optional), and print freeze-drying curve and data.
5. Eutectic point test function.
6. 10-inch large color screen makes it easier to operate the equipment.

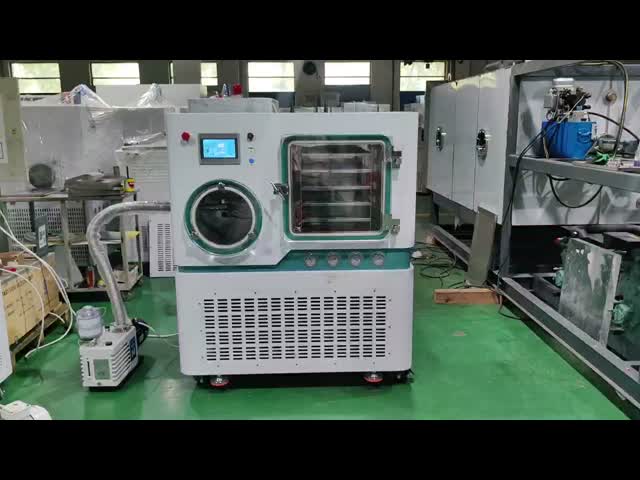

Application Photos of Freeze Dryer Machine
